Automatic Gate Openers

make your life a whole lot easier...



So Get One Today!

contact us to find out more







Manual



Features:

Open and close the gate by remote control and keypad

Soft start

Emergency release key in case of power failure

Dual/Single gate running mode

Optional master and slave gate running

Adjustable opening/closing interval between master and slave gate

Stop/Reverse in case of obstruction during gate opening/closing.

The force of the motor can be programmed

Optional photocell protection

Built in adjustable auto-close (programmable from 0-99 sec or 1-9min)

Digital display indicates the running situation and setting menu

Reliable electromagnetism limit for easy Adjustment
One year warranty


Whats in the box:

LM902 Gate Opener,

Mounting Hardware

photocells

alarm light

safety signs

installation CD

4 Remotes

Manual

Control panel
Unlock Key


Technical specs:

Motor:24 V DC, 80W per actuator, 3A current

Power supply: 110V/60Hz (or 220V/50Hz)

Actuator speed: 1.6 cm/second (.63/second)

Actuator travel: 400mm (15.75)

Max.Weight of each gate: 300 kgs (660 lbs)

Max.Width of each gate: 5 m (10ft)

Open/closing running time: programmable (from 0 to 99 seconds)

Autoclosing duration: programmable (from 0 to 99 seconds)

Ambient temperature: -22c- +55c

Protection class: IP44















Basket

No items in basket.

details

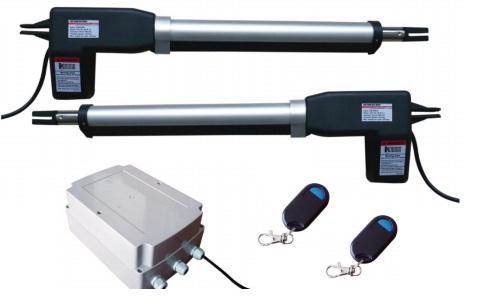

Dual Swing Opener

Dual Swing Opener This Dual Swing Opener will handle single swinging gates up to 5m in length or weighing up to 330kgs (5m and 330kgs per leaf), may be installed with Solar Panel and back up batteries.

Quantity

retail: $695.00



Show basket
