Automatic Gate Openers

make your life a whole lot easier...


So Get One Today!

contact us to find out more



Waterproof, suitable for use outside
Standalone or can be used with WG26 readers
Capacity: 2000 user’s cards, 2000 codes
Access Methods: Cards, code, card + code
Low power: static current less than 30ma
Resettable private passwords
Fast, less than 0.1s.
Lost cards can be simply deleted
Short-circuit protect: when a relay or alarm output is short circuit, output will shut down in 100μS
Acousto-optic controlled output, anti-theft alarm relay. Can be connect with alarm
Built in Anti-Tamper
Continuous card Addition
Waterproof degree:IP68

Whats in the box

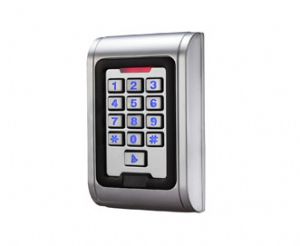

1 x 100 E RFID Keypad
connection cables
mounting hardware
Instruction Manual

Technical Specifications
Working Voltage: AC&DC9-28V
Static Current: ≤30mA
Reading Range: 3~8cm
Capacity: 2000 users
Environment Temperature: -25℃~60℃
Environment Humidity: 10%~90%
Electric lock output: ≤3A
Alarm output: ≤20A
Output short-circuit protection time: ≤100μS
Open-door time: 0 ~ 99 seconds (adjustable)
Size: 120 *80*25mm
Card types
Type: Card Frequency  Reading-Card Distance
SA-100EM 125KHz  5-15CM
SA-100HID1 25KHz  5-15CM
SA-100Mifare 13.56MHz 3-10CM




No items in basket.


GM 100EM

Why not control access to your property. These clever Waterproof wired access control systems are available using combination Keycard-RFID-keypad technology. They are designed for ease of use and are backlit for use at night


retail: $260.00
