Features:
Fully built-in compact fashionable design
Pedestrian open or full open function
flashing lamp interface (AC/DC) for pre opening warning (with LDR control)
Autoclose delay time-adjustable
Backup battery (optional) with battery status display
Full speed operation selectable
Digital gate limits positioning system (DLPS)
Electronic soft start and soft stop
Magnetic limit switch control (optional)
Door alarm (when gate in closed position)
Photocell sensor to prevent hitting obstacles
Automatic stop when hitting obstacle during opening
Automatic reverse when hitting obstacle during closing
Solar System compatible
Whats in the box:

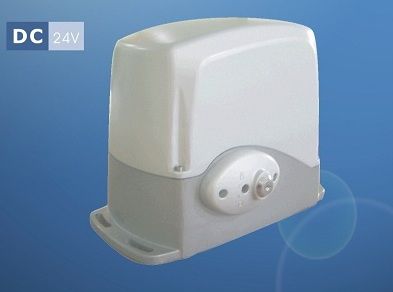

1 x Sliding gate motor
2 x remotes
4 meters of rail
2 x magnetic limit switch
mounting hardware
instruction/installation manual
Specifications:
Electrical
Power supply: AC240/ AC11010%V, 50Hz
Operating Voltage: DC24
Electronic Controller: Microcontroller Based
Safety Detection: Over Current Detection
Safety Barrier: Infrared Beam Sensor
IP Rating: 1P57
Mechanical
Max. Gate Weight:800 kg
Gate moving speed: 13m/min
Gate Limit type: Intelligent Position Detection! Magnetic Limit Switch (optional)
Operating distance: ≤50m Frequency:433.92 MHz
Remote control mode: Close /Open/Stop/ Pedestrian Open
Auto close time 0---99 sec (Adjustable)
Noise ≤65dB
Product actual size:29*23*15 cm
Packing size:40*30*185 cm
Environmental temperature: -15 to +55C
