Automatic Gate Openers

make your life a whole lot easier...



So Get One Today!

contact us to find out more





Features:
Worm gear provides durability and silence in motor operation.
Slowdown during the closing phase. .
Hall sensor can be imbeded (Optional)
Hold open capable
Gates up to 200 kg / 3.5m.
24V DC electro-mechanical gear motors
Single-gate
Two back-up batteries for power failure operation (Optional)
Incorporated radio receiver can be matched with 50 transmitters.
Motor torque adjustment.
Modern appearance and easy installation.
Gate auto-closed setting.
Rolling code transmitter and recivers
Rolling code 433MHZ transmitter.
30-50 meters transmitting distance.
Two buttons for single-gate or dual-gate operation.
Easy dip swtich settings
Audible alarm for opening and close time
can be used for both inwards and outwards opening gates
Simple self programming
Alarm light opening delay features

Whats in the box:
1 x Gate opening arm
1 x Control box
1 x Mounting hardware
2 x Remotes
Installation instructions


Technical Specifications
Motor Power Supply 24 VDC
Max . Gate Length 3.5 M
Max. Gate Weight 200 KGS
Thrust 2000N
Rod Stroke 400 mm
Working Temperature -20 - 70
Degree of Protection IP 44
Encoder(Hall Sensor) Limit Switch (Optional)
Duty Cycle 20%
240 V AC to 24 v DC transformer
Auto close 12, 25 and 50 secs





Basket

No items in basket.

details

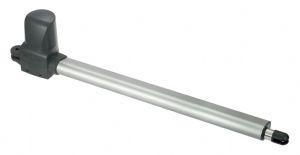

GM 701

The GM 701 electro-mechanical swing gate operators are designed for residential single gate applications. These innovatively designed gate opening system are smart in appearance and packed full of features including a simple motor release system by key in case of power failure. The use of the hall sensor/adjustable limit switches imbedded in the gear motor (optional extra) provides intelligent operation of the gate opening system

Quantity

retail: $655.00
