Automatic Gate Openers

make your life a whole lot easier...


So Get One Today!

contact us to find out more


Worm gear provides durability and silence in motor operation.
Slowdown during the closing phase.
Hall sensor can be embedded (is optional)
Hold open capable
Gates up to 150 kg / 2m.
24V DC electro-mechanical gear motors
Dual Gate
Two back-up batteries for power failure operation (Optional)
Incorporated radio receiver can be matched with 50 transmitters.
Motor torque adjustment.
Modern appearance and easy installation.
Gate auto-closed setting.
Rolling code transmitter and receiver’s
Rolling code 433MHZ transmitter.
30-50 meters transmitting distance.
Two buttons for single-gate or dual-gate operation.
Easy dip switch settings
Audible alarm for opening and close time
can be used for both inwards and outwards opening gates
Simple self-programming
Alarm light opening delay features
What’s in the box:
2 x Gate opening arms
1 x Control box
1 x Mounting hardware
2 x Remotes
Installation instructions

Technical Specifications:
Motor Power Supply 24 VDC
Max. Gate Length 2 M
Max. Gate Weight 150 KGS
 Thrust 1500N
Rod Stroke 360 mm
Working Temperature -20 - 50
Degree of Protection IP 44
Encoder(Hall Sensor) Limit Switch Optional
Duty Cycle 20%
240 V AC to 24 v DC transformer
Auto close 12, 25 and 50 secs.






No items in basket.

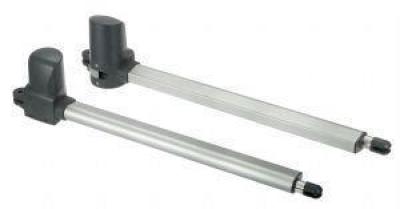

GM 702a

The GM 702a electro-mechanical swing gate operators are designed for residential double gate applications. These innovatively designed gate opening system are smart in appearance and packed full of features including a simple motor release system by key in case of power failure. The use of the hall sensor/adjustable limit switches embedded in the gear motor (optional extra) provides intelligent operation of the gate opening system. Offer includes free Keypad valued for $130.


retail: $760.00
