Features:
Fully built-in compact fashionable design
Pedestrian open or full open function
flashing lamp interface (AC/DC) for pre opening warning (with LDR control)
Autoclose delay time-adjustable
Backup battery (optional)
Full speed operation selectable
Electronic soft start and soft stop
Magnetic limit switch control
Photocell sensor capable x 2 to prevent hitting obstacles
Automatic stop when hitting obstacle during opening
Automatic reverse when hitting obstacle during closing
Solar System compatible

Whats in the box:
1 x Sliding gate motor
2 x remotes
2 x magnetic limit switch
mounting hardware
instruction/installation manual

4m of drive rail

Specifications:
Electrical
Power supply: AC240/ AC11010%V, 50Hz
Operating Voltage: DC24
Electronic Controller: Microcontroller Based
Safety Detection: Over Current Detection
Safety Barrier: Infrared Beam Sensor
IP Rating: 1P57

Mechanical
Max. Gate Weight:400 kg
Gate moving speed: 22cm/sec
Gate Limit type: Intelligent Position Detection! Magnetic Limit Switch (optional)
Operating distance: ≤50m Frequency:433.92 MHz
Remote control mode: Close /Open/Stop/ Pedestrian Open
Auto close time(Adjustable)
Noise ≤65dB
Product actual size:29*23*15 cm
Packing size:40*30*185 cm
Environmental temperature: -15 to +55C























Basket

No items in basket.

details

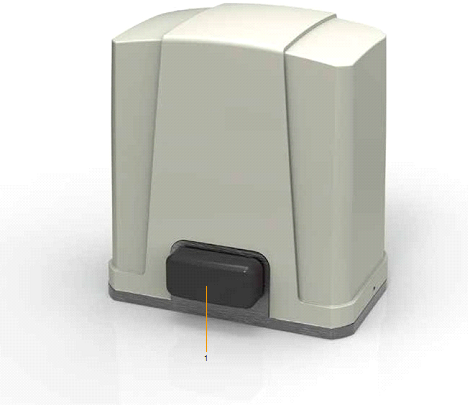

GMSG500

The GM 500 from Gatemaster, is a Sliding Gate Opener offering a low cost automatic opening solution for driveway and security gates. This Gate opener is suitable for sliding gates up to 500 kgs. This sliding gate solution provides for magnetic limit switchs

Quantity

Base Price: $499.00
