For Pedestrian Gate Applications simply co-ordinate the Magnetic lock set with any of the RFID/ Keypads and pushbuttons listed on the Gatemaster site. This will allow Secure access to your property through your Pedestrian Gate.


People that brought this item also brought the following



Remote Receiver


Waterproof 12 vDC
280 kg Holding force
Current 500 milli amps

Whats in the box:
1 x magnetic lock
1 x armature
Screws and Fastners
Installtion instructions
1 x UPS power supply
1 x unlock interface
1 x Z Bracket
1 x L Bracket

Holding Force: 280kg(600Lbs) Voltage: 12DC+10%
Current Draw: 12V 500 milli amp
Optional Bracket: UB 350
Surface Temp: ≤+20℃
Operating Temp: 10~+55℃
Suitable Humidity: 0~90%(non-condensing)
Finishes for Shell: Anodized aluminum
Finishes for Magnetic: Zinc
Finishes for Armature: Zinc
Weight: 2kg




No items in basket.

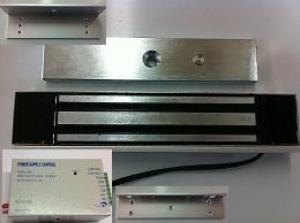

Magnetic lock Set

Although all of the gate openers listed at Gatemastter have a 12 or 24 V DC output the Current available is in the milliamp range and therefore will not suit a Magnetic lock Directly. This Magnetic lock package is designed to interface with all of the gateopeners on the site. It comprises A Magnetic lock and armature, a Power supply, Unlock interface and both the z and L brackets.


Base Price: $290.00
