Automatic Gate Openers

make your life a whole lot easier...



So Get One Today!

contact us to find out more



Manual

Features:
Open and close the gate by remote control and keypad
Soft start
Emergency release key in case of power failure

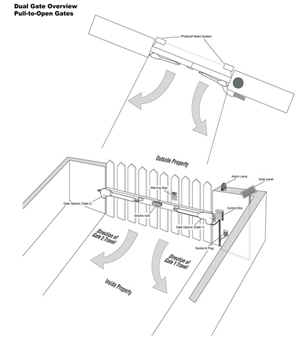

Dual/Single gate running mode
Optional master and slave gate running
Adjustable opening/closing interval between master and slave gate
Stop/Reverse in case of obstruction during gate opening/closing.
The force of the motor can be programmed
Optional photocell protection
Built in adjustable auto-close (programmable from 0-99 sec or 1min-9min)
Digital display indicates the running situation and setting menu

Reliable electromagnetism limit for easy Adjustment
One year warranty

Whats in the box:
LM901 Gate Opener,
Mounting Hardware
safety signs
installation CD
4 Remotes
Manual
Control panel
Unlock Key

Technical specs:
Motor:24 V DC, 80W per actuator, 3A current
Power supply: 110V/60Hz (or 220V/50Hz)
Actuator speed: 1.6 cm/second (.63/second)
Actuator travel: 400mm (15.75)
Max.Weight of each gate: 300 kgs (660 lbs)
Max.Width of each gate: 5 m (10ft)
Open/closing running time: programmable (from 0 to 99 seconds)
Autoclosing duration: programmable (from 0 to 99 seconds)
Ambient temperature: -22c- +55c
Protection class: IP44





Basket

No items in basket.

details

Single Swing Opener

This Single Swing Opener will handle single swinging gates up to 5m in length or weighing up to 330kgs (5m and 330kgs per leaf), may be installed with Solar Panel and back up batteries.

Quantity

retail: $570.00
