Manual

Features:
TFT-5.6" LCD Color Displayer
2 wire Non Polarity
Unlock Capable
Pinhole camera
RFID/ Keypad capable of accepting up to 480 Cards and Codes
Open mode card, code or card and code
RJ 11 cable for connections
Handsfree Duplex
Night Vision capable
Multiple melodies
Outdoor moniter is fitted with and anti Tamper alarm
Easy installation
Wall Mount moniter

Whats in the box:
1x Monitor
1x Mounting Bracket
1x Outdoor station
1x Rain Hood
Mounting screws
ac/dc Power Adaptor

Specifications:
Indoor monitor
Display screen: 5" TFT-COLOR LCD
DC output: DC 15V /1 200MA
Picture resolution: 320*240*3pixels
Signal standard: N/P
Power consumption: operating 14W,
standby 2W
Connection: 5 wire
Working temperature: -10---40Oc Dimension: 218*170*36mm

Door station
Camera sensor: 1/4" CCD
Minimum illumination: 0.5 LUX
View angle: 92 1/4"
Video output: I Vp-p/75
Signal standard: N/P
Night vision source: White LED
Power consumption: DCl2V-3W
Lock connection: to camera
Working temperature: -10C---50 0c
Dimension: .105*130*30mm

Basket

No items in basket.

details

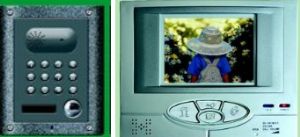

Video/RFID/Keypad combo Wall Mount

Gatemaster is excited to be able to introduce these innovative Video intercom RFID/Keypad access combination systems. Combining two discreet features into one, This low profile unit provides a highly reliable simple system that allows both video intercom communication along with Access control at half the size of two independent systems.

Quantity

retail: $550.00
