Manual

Features:
Colour camera with night vision (6 infrared / IR leds) Portable handset with 2,4" TFT LCD display
Remote unlocking doors & gates
Support range up to 170 meter in open field
Digital video & audio transmission for optical reliability Operating in the 2,4Ghz band
No interference with WLAN/WIFI networks
No interference with similar TecTronic devices in the area
Full duplex cristal clear communication 83 effective communication channels
Frequency-hopping technology
Super error-correcting and anti-jamming capabilities to ensure stable conversations in any circumstance
In compliance to the R&TTE Directive 1999/5/EC



Whats in the box:
1 x outdoor station and power suply
1 x monitor plus charging station and charger
instruction manual


Technical specifications:
Teclronic Wireless Video Intercom
Frequency: 2402-2478MHz
Transmission Power: 20dBm max
Sensitivity: .-100dBm
Spread Spectrum Technology
Modulation: GFSK
Channel Spacing: 1M11z
Duty Cycle: 1,5ms
Duplex
Number of channels: 20

Outdoor unit
Image Sensor: 114 CMOS
Vision Angle: 70'
Mm. Illumination: 0 Lux (IR night vision on)
Power: I2VDC/ 1A
Current: 20mA.-30mA (standby), 350mA (in operation)
Audio: 16-digits digital audio signal, DAC interface, 8Kbps sampling speed rate
Image Compression: MJPEG compression
Transmission Power: 16-2OdBm
Ringtone: 12 selectable options
Dimension: 11 lmm(H) x 115mm(W) a 45-66mm(D) -> sunscreen is 66mm at the top
Weight: 390g

Indoor unit (handset)
Display: 2,4" TPT LCD
Effective Pixels: 320 x 240
Power: 5V DC / I(rechargeable battery operated)
Battery Charging Time: +1 4 hours (First time use 7-10 hours)
USB Port: For recharging battery
Current: 20tnA-30mA (standby), 240mA (in operation), 3,7V
Receiving Sensitivity: -HOdBm
Dimension: 102mm(H) x 66mm(W) x 17mm(D)
178mm(H) x 66mm(W) x 17mm(D) => including antenna
Weight: 146g

Battery3,7V 205OmAh
Rechargeable Li-Ion battery
Battery Life standby: 72 hours
Battery Life in operation: approx 8.5 hours
loading Voltage: 4.2 volts







Basket

No items in basket.

details

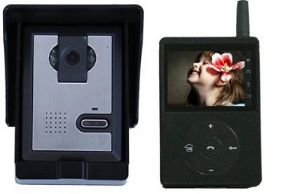

Wireless Video Intercom Long Range

Our wireless video door phone comprises an outdoor camera, indoor monitor and wireless unlock control. You can operate the indoor monitor to communicate with visitors via voice and video, and then unlock the door/gate as required. It's is particularly well suited for residential properties where cabling is not a practical solution The outdoor camera is easy to install. Indoor monitor is portable. It can be hung on the wall or cabinet, or be placed on the desk, or dining table.

Quantity

retail: $390.00
