Manual

Features:
2.4GHz digital frequency hopping and encryption technology, transmission distance up to 50-100 meters line of site, robust anti-interference
Clear night vision can capture images in� low-illumination environments
Rain shield for the outdoor camera
3.5 TFT color panel
Surveillance, wireless unlock, hands-free call and talk
16 chord melodies and melody volume is adjustable
Brightness and talk volume are adjustable
Date and time shown on screen
Indoor monitor could take pictures automatically or by instruction. It could store up to 100 pictures (max 500 pictures with extra storage) with date and time
BL-5J battery of camera and monitor is replaceable and rechargeable
Outdoor camera has two working modes:
Indoor monitor can proactively monitor outdoor anytime if outdoor camera's power adaptor is applied;
The indoor monitor can't proactively monitor the outdoor if outdoor camera is using battery instead of power adapter. The working cycle for battery is about half a year.
Wireless unlock control supports power on and power off unlock mode
One outdoor camera supports up to 4 indoor monitors and one indoor monitor can support up to 4 outdoor cameras

Whats in the box:
1x outdoor monitor
1 x raincover
1 x indoor monitor
2 x batteries
1 x wireless unlock control
mounting harware
instruction manual
2 x power supplies

Specifcations
Teclronic Wireless Video Intercom
Frequency: 2402-2478MHz
Transmission Power: 20dBm max
Sensitivity: .-100dBm
Spread Spectrum Technology
Modulation: GFSK
Channel Spacing: 1M11z
Duty Cycle: 1,5ms
Duplex
Number of channels: 20

Outdoor unit
Image Sensor: 114 CMOS
Vision Angle: 70 Degrees
Power: I2VDC/ 1A
Current: 20mA.-30mA (standby), 350mA (in operation)
Audio: 16-digits digital audio signal, DAC interface, 8Kbps sampling speed rate
Image Compression: MJPEG compression
Transmission Power: 16-2OdBm
Ringtone: 16 selectable options
Dimension: 126mm(H) x 93mm(W) a 31mm(D)
Weight: 390g

Indoor unit (handset)
Display: 3.5" TPT LCD
Effective Pixels: 320 x 240 or better
Power: 5V DC / 1 (rechargeable battery operated)
Battery Charging Time: +14 hours (First time use 7-10 hours)
USB Port: For recharging battery
Current: 20mA-30mA (standby), 240mA (in operation), 3,7V
Receiving Sensitivity: -100dBm
Dimension: 141mm(H) x 87mm(W) x 20mm(D)
Weight: 190g

Battery3,7V 205OmAh
Rechargeable Li-Ion battery
Battery Life standby: 72 hours
Battery Life in operation: approx 8.5 hours
loading Voltage: 4.2 volts

Basket

No items in basket.

details

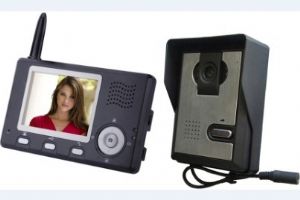

Wireless Video Intercom Short Range

Our wireless video door phone comprises an outdoor camera, indoor monitor and wireless unlock control. You can operate the indoor monitor to communicate with visitors via voice and video, and then unlock the door/gate as required. It's is particularly well suited for residential properties where cabling is not a practical solution The outdoor camera is easy to install. Indoor monitor is portable. It can be hung on the wall or cabinet, or be placed on the desk, or dining table.

Quantity

retail: $320.00
